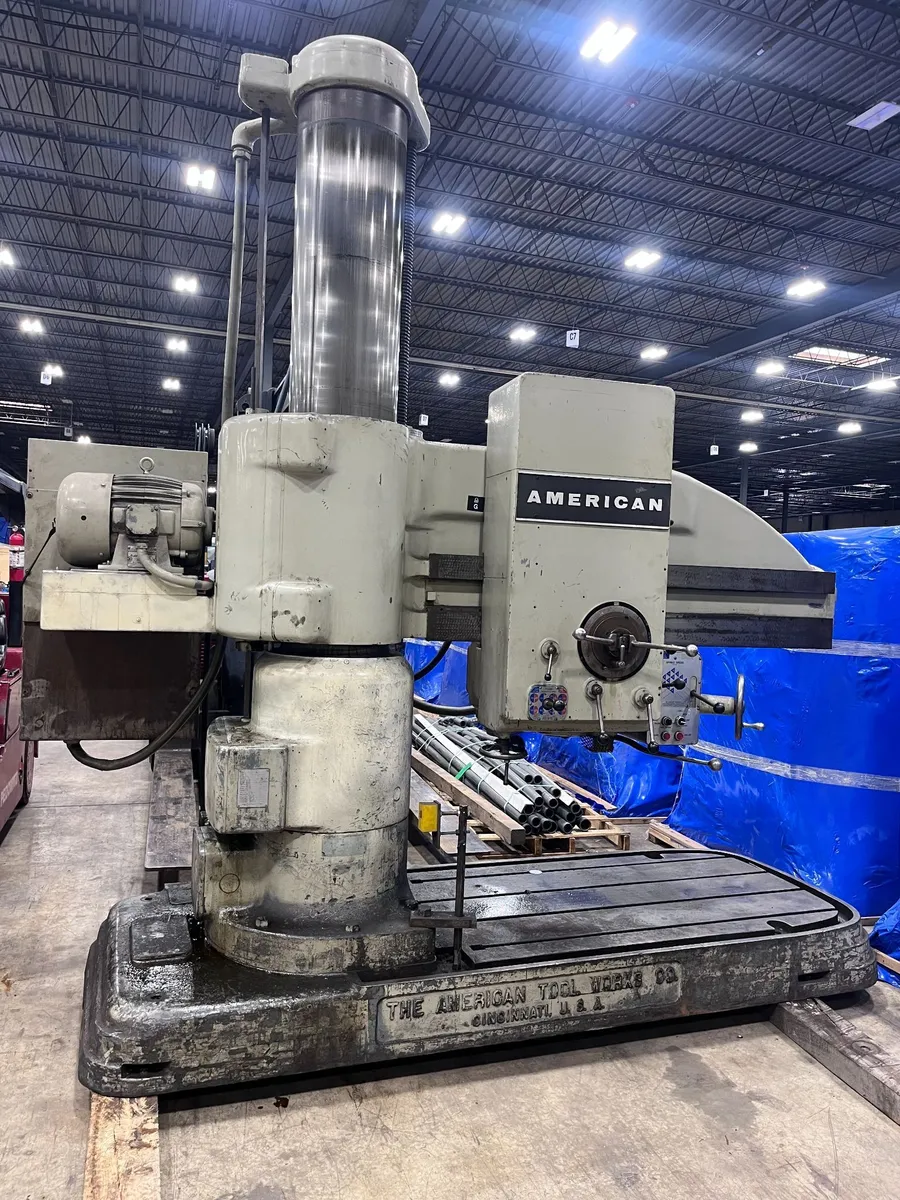

5’ x 15” American tool works Radial Drill, S/N 76760, Power Elevation & Clamping, Heavy Duty USA Made

5’ x 15” American tool works Radial Drill, S/N 76760, Power Elevation & Clamping, Heavy Duty USA Made

Machine Description:
Arm Length 5'
Column Diameter 15"
Spindle Taper #5 MT
Spindle Diameter 3.25"
(32) Spindle Speeds, Range 20 to 1600 RPM
(16) Spindle Feeds, Range .003 to .125 IPR
Drills to Center of Circle on Base 120"
Distance, Spindle to Base, Maximum 66"
Distance, Spindle to Base, Minimum 8.5"
Face of Column to Spindle, Minimum 14"
Vertical Spindle Travel in Head 18"
Vertical Arm Travel on Column 39.5"
Horizontal Head Travel on Arm 46"
Base Dimensions, L x W 72" x 42"
Height of Base 9"
Motor, Horsepower 15 HP
Weight, Approximately 18,000 LBS.
