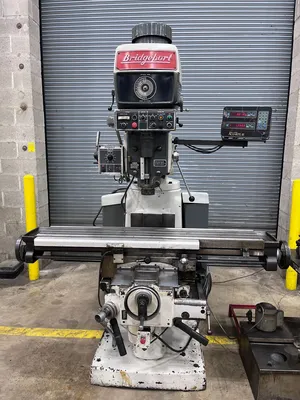

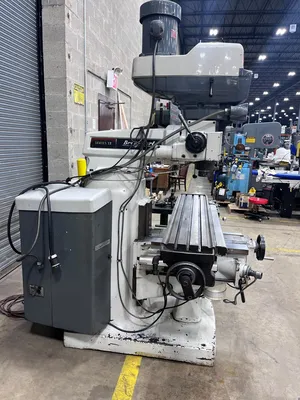

11” x 58” Bridgeport Vertical Variable Speed Milling Machine, Model Series II
Have one to sell?
$4,950.00 USD
ConditionUsed
1 available
Heavy Duty, Fully Functional, Well Tooled

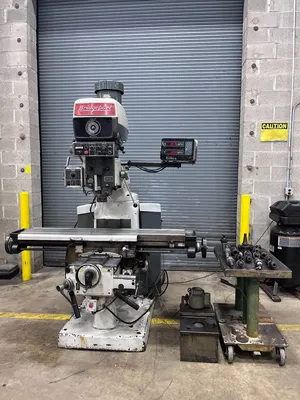

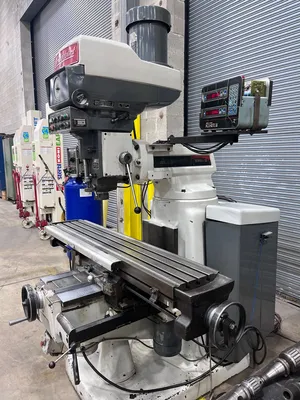

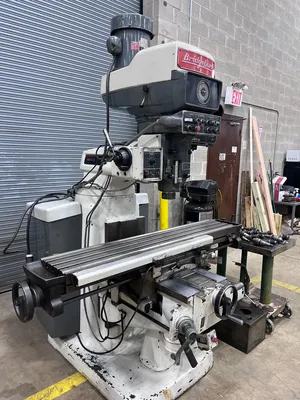

11” x 58” Bridgeport Vertical Variable Speed Milling Machine, Model Series II, S/N 5909, DRO & Feed & Tooling

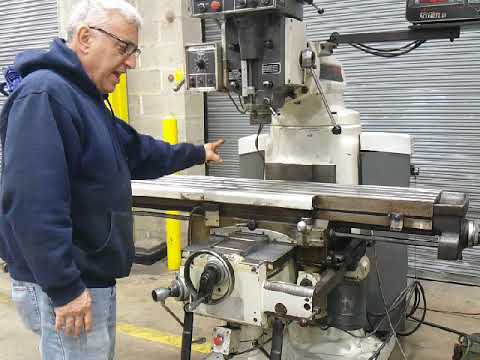

To View under Power follow the link Below
https://youtu.be/Xoc86fQrHZ0
Specifications:

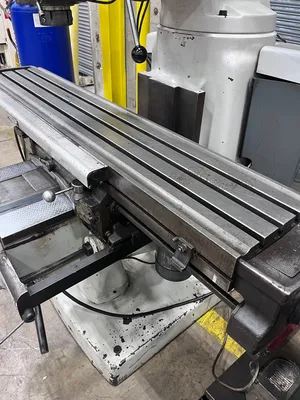

Table Size: 11” x 58”
Table weight Capacity 1500 LBS
Table Feeds X & Y 3/8 – 24 IPM
Longitudinal Travel: 30″
Cross Travel:15″
Quill Travel: 5″
Knee Travel: 16″
Spindle Speeds (Infinitely Variable): 50 - 3500 RPM
Spindle Taper: #40 Kwik Switch
Spindle Feeds .6 – 2,5 IPM
Spindle Motor HP: 4
Electrical: 220/440V(Wired 220)/3PH
Machine Weight 4500 LBS Approx.
Acu-Rite 2 Axis DRO

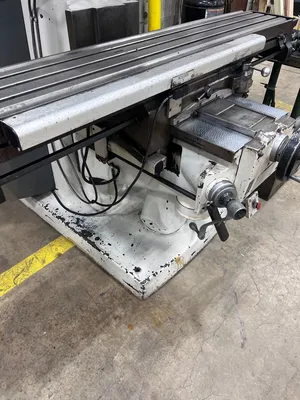

Power Long and Cross Feeds
Power Quill Feed

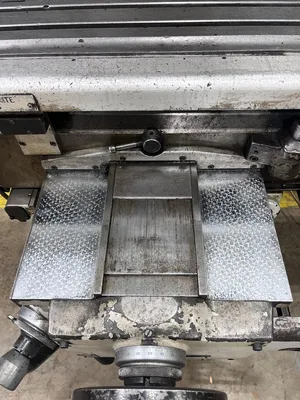

Chrome ways
Auto Shot Lube
Coolant

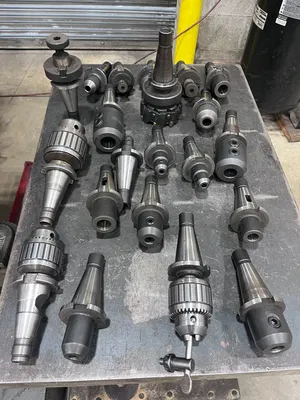

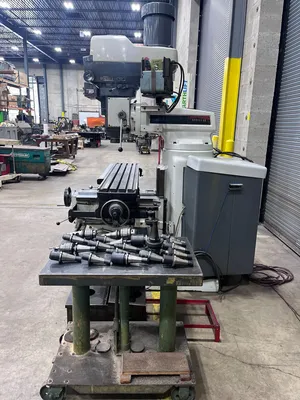

(21) Tool Holders

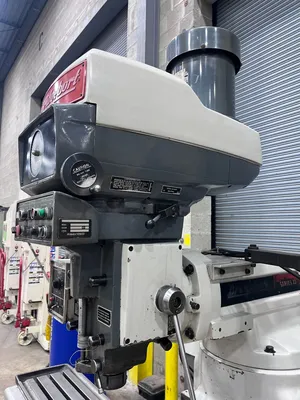

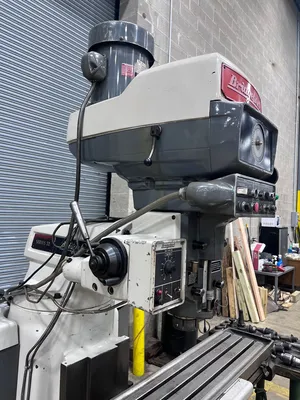

Please Note this machine has a Rigid Ram, Head Swivels Left and Right but does not Tilt. It has a much more Rigid Set Up.
Very Good Condition – Ways excellent, Head quiet
Inspect Under Power in our Lebanon NJ Warehouse
Price $4950.00
