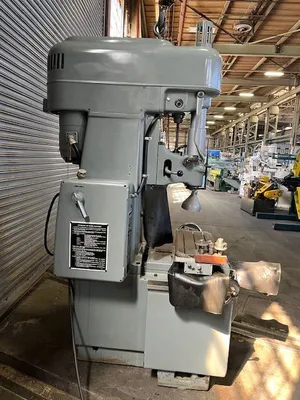

Moore Jig Borer, Model #3, S/N B1362

Moore Jig Borer, Model #3, S/N B1362

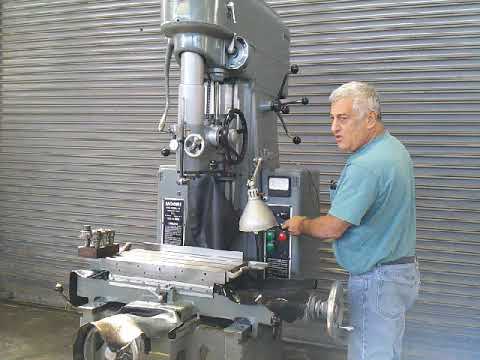

To View under Power Follow the Link Below
https://youtu.be/BPMdegbW52g

Table Size: 11” x 24”
Longitudinal Table Travel: 18”
Cross Table Travel: 11”
Spindle Housing Travel: 11-15/16”
Vertical Quill Travel: 5”
Max Spindle to Table: 20-13/16”
Spindle Center to Column Ways: 10”
Spindle Center to Column Throat: 13.75”
Spindle Speed: 60 – 2250 RPM
Spindle Head Feed: 0.00075” – 0.003” /Rev
Motor: 2 HP
Motor Speed: 865 – 1725 RPM / 865 – 1760 RPM
Electrics: 220 V; 3 Ph; 60
Approx. Dimensions (l x w x h): 76” x 50” x 96”
Approx. Weight: 3,900 LB
