20 AMP Hansvedt Workman, Sinker Type EDM Machine with H- Pulse 201 Power supply
Have one to sell?
ConditionUsed
1 available
$4,950.00 USD
Fully Functional

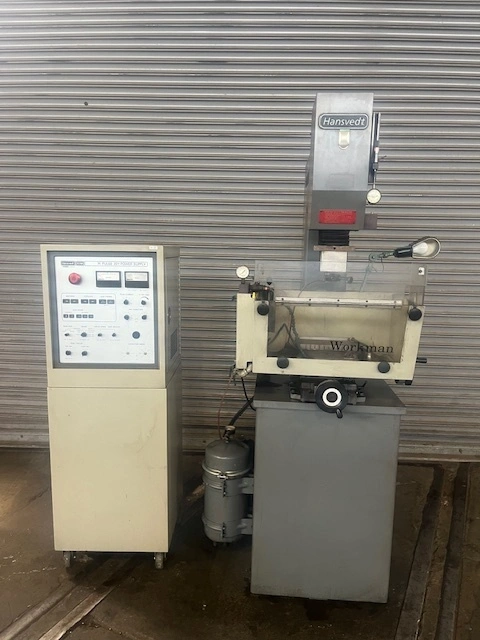

20 AMP Hansvedt Workman, Sinker Type EDM Machine with H- Pulse 201 Power supply, S/N AP141816
Machine Description:
Table size 9” x 15”
Table Travels 6” x 8”
Work Tank 16” x 24” x 11” High
Platen to Table Max, 18”
Ram Travel 8”
Platen Size 5.75” 4”
Max. Electrode Weight 75 LBS
H – Pulse 201 Power supply
SIMPLE, UNDERSTANDABLE SPARK& SERVO CONTROLS
-"SERVO CONTROLS" FEATURING DITHER, MANUAL, EDGE FINDER,
AUTO RETRACT, AUTO LOCK, ORBIT STOP, ORBIT LOCK,
SERVO SPEED& GAP ADJUST
-"EDM CONTROLS" LOW PEAK CURRENT, ARC DURATION
(.5 TO 1843 MICROSECONDS), PEAK CURRENT, POLARITY,
ELECTRODE MATERIALS & % ON-TIME SELECTIONS
FOR ULTRA-FINE FINISHING
DC SERVO & BALLSCREW DRIVE FOR RAM
RAM CYCLER PROVIDES UP/DOWN MOVEMENT TO PROMOTE BLIND
CAVITY FLUSH
"GAP MONITOR" AUTOMATIC DC ARC PROTECTION SYSTEM
MICROMETER DOWN STOP W/AUTOMATIC RETRACTION
5” x 10” Permeant Magnetic Chuck
Taken Out of Service in Good working Condition
Price: $4950.00
