Moore NO 3 Jig Borer

Have one to sell?
908.399.8133
finemachinery@yahoo.com
$2,500.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Jig Borers
Manufacturer:
MOORE
Model:
#3 BORER
Condition:
Good
Stock #:
12228
Status:
For Sale
Serial #:
B-352

Description

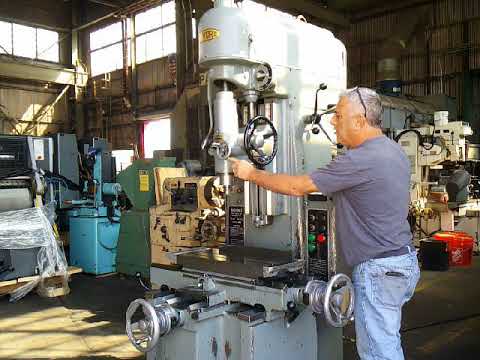

Moore NO 3 Jig Borer

Inspect Under Power in Our Lebanon NJ Warehouse

Table Size-W11"279.4 mm
Table Size-L24"609.6 mm
Longitudinal Table Travel18"457.2 mm
Cross Table Travel11"279.4 mm
Spindle Housing Travel11.938"303.21 mm
Vertical Quill Travel5"127 mm
Max Spindle to Table20.813"528.64 mm
Spindle Center to Column Ways10"254 mm
Spindle Center to Column Throat13.75"349.25 mm
Spindle Speed60 – 2250 RPM60 – 2250 RPM
Spindle Head Feed0.00075” – 0.003” /Rev0.00075” – 0.003” /Rev
Motor2 hp1,491.4 W
Motor Speed1725 RPM / 865 – 1760 RPM1725 RPM / 865 – 1760 RPM
Electrics220 V; 3 Ph; 60220 V; 3 Ph; 60
Dimensions76” x 50” x 96”76” x 50” x 96”
Weight3900 lbs3900 lbs

Table Size: 11” x 24”

Longitudinal Table Travel: 18”

Cross Table Travel: 11”

Spindle Housing Travel: 11-15/16”

Vertical Quill Travel: 5”

Max Spindle to Table: 20-13/16”

Spindle Center to Column Ways: 10”

Spindle Center to Column Throat: 13.75”

Spindle Speed: 60 – 2250 RPM

Spindle Head Feed: 0.00075” – 0.003” /Rev

Motor: 2 HP

Motor Speed: 865 – 1725 RPM / 865 – 1760 RPM

Electrics: 220 V; 3 Ph; 60

Approx. Dimensions (l x w x h): 76” x 50” x 96”

Approx. Weight: 3,900 LB
